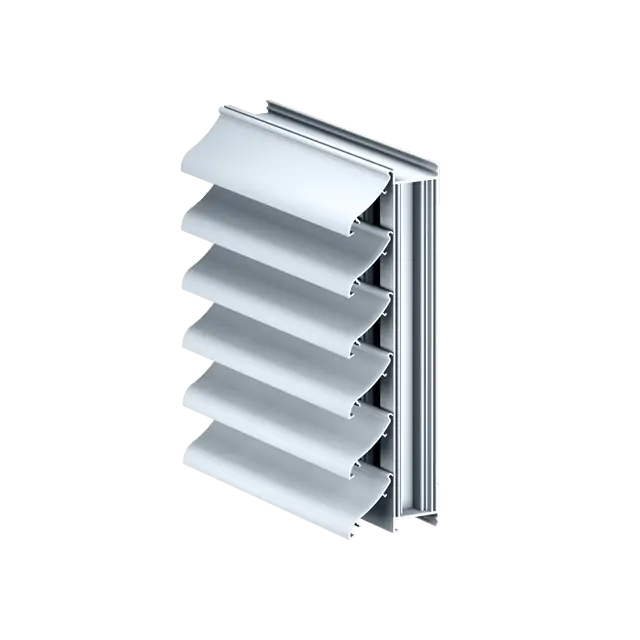

SL55 Hurricane Shutter Louver
Technical Specifications
• Material: Extruded aluminum 6063-T5 / 6063-T6
• Blade Type: Triple Bank, Drainable
• Finish: Anodized / Powder Coated/PVDF
• Certification: AMCA 550
• Blade Orientation: Horizontal
• Frame Thickness: 2.0-3.0 mm
• Angle: 45°
• Louver Depth: 100 mm
• Blade Thickness: 1.5 mm
Product Overview
The Vanman SL55 is a high-performance hurricane shutter system featuring a triple bank louver design engineered to resist storm-driven rain and wind. This stormproof solution is AMCA 550 certified and ideal for coastal buildings, infrastructure, and mechanical rooms in hurricane-prone zones. SL55 louvers are tested for high wind speed rain resistance and air performance, making them suitable for areas with wind speeds up to 22 m/s and rainfall of 202 mm/h. Under such conditions, they maintain a rain resistance of 99% at a core wind speed of 3.5 m/s while ensuring effective airflow control.
Air Performance Data
Content | Coefficient | Airflow m3/s | Pressure Pa | Class |
Intake Ce | 0.192 | 2.7 | 62 | 4 |
Exhaust Cd | 0.214 | 2.8 | 52 | 3 |
Wind Driven Rain Data
Wind Speed:13 m/s Rainfall:75 mm/h | ||||||||
Core Velocity m/s | 0.0 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 |
Effectiveness % | 100.0 | 100.0 | 100.0 | 100.0 | 100.0 | 100.0 | 100.0 | 99.9 |
Class | A | A | A | A | A | A | A | A |
Wind Speed:22 m/s Rainfall:202.4 mm/h | ||||||||
Core Velocity m/s | 0.0 | 0.5 | 1.0 | 1.5 | 2.0 | 2.5 | 3.0 | 3.5 |
Effectiveness % | 100.0 | 100.0 | 100.0 | 100.0 | 100.0 | 100.0 | 100.0 | 99.7 |
Class | A | A | A | A | A | A | A | A |
Key Features
• Triple bank louver configuration for enhanced wind and rain protection
• AMCA 550 tested and certified for hurricane resistance
• Aluminum construction for corrosion resistance and lightweight strength
• Drainable blade profile to reduce water penetration
• High free area with effective airflow control
